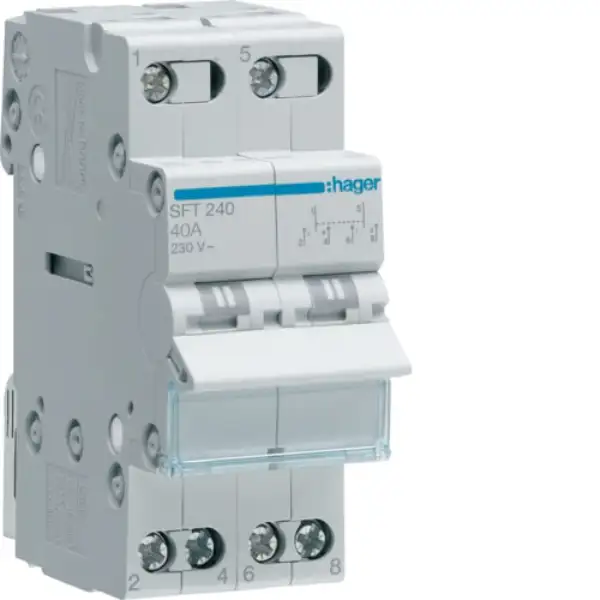

Hager Change Over SFT240 40A 2P DIN

Hager Change Over 2P 40A (40 Amp)

Architecture

• Number of poles - 2P
• Type of pole - 2P

Configuration

• Number of modules - 2

Main electrical features

• Rated operational voltage Ue - 230v
• Frequency - 50/60 Hz

Voltage

• Rated insulation voltage - 440 V
• Type of voltage input 1 - AC
• Rated impulse withstand voltage - 4000 V

Electric current

• Rated operational current in AC21category B - 40 A
• Acceptable current rating with AC22 category A - 40 A
• Rated current - 40 A
• Rated short-time withstand current 1s - 0.6 kA
• Thermal rated current outside of housings - 40 A
• Rated operational current in AC21 category A - 40 A
• Acceptable current rating with AC22 category B - 40 A

Dimensions

• Depth of installed product - 70 mm
• Height of installed product - 83 mm
• Width of installed product - 35 mm
