MC4 PV Male/Female set 6mm²

Description

MC4 connectors and panel receptacles provide a cost-effective, high-quality solution for low-voltage DC or PV applications, supporting up to 1500V, 100A, and 10mm² / 8 AWG cable. The twin pack includes 1 male and 1 female connector with a PV snap-in lock for 6mm² cables.

Also, check out our solar cables:
Solar Cable 6mm² Red
Solar Cable 6mm² Black

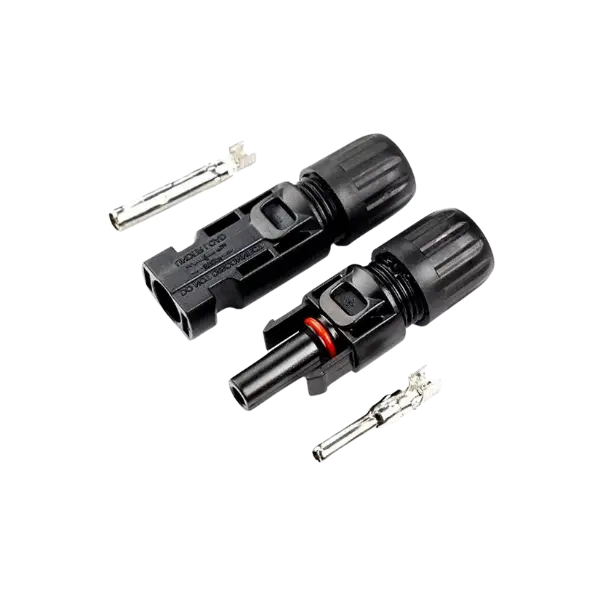

MC4 Male and Female set

Specification

Snap-in lock
Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool
Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector
Tried and tested plug connectors, 14 years of experience in the field
Suitable for assembly with cross-sections of 4 and 6 mm²
Rated current: 39 A (for 4 and 6mm2 cable)
Rated voltage: 1000 V IP Rating: IP65 / IP68 when mated (1h / 1min) Cross section: 4 - 6 mm²
