R700.00

Electricians 600A AC Clamp Meter

SKU: 7199
In Stock
Regular Shipping
Package between courier set limits
In Stock

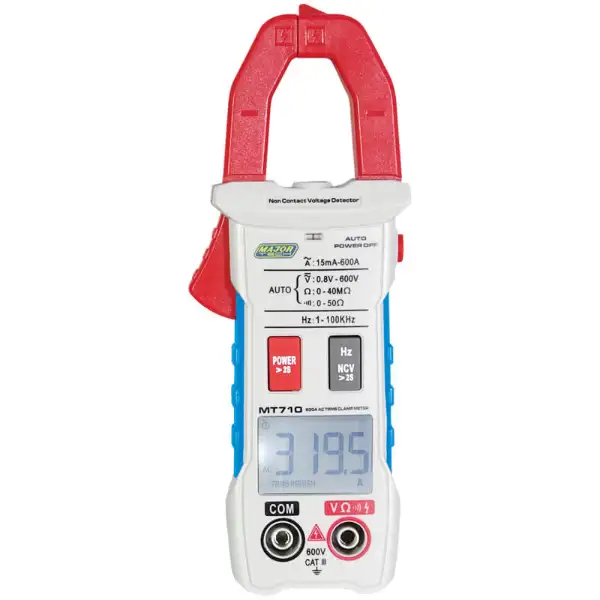

MT710 CLAMP METER 600V AC

Description

The MT710 is a 600A AC TRMS Clamp Meter with indication on a large backlit LCD display, providing fast sampling time with high accuracy. The Smart mode, “AUTO”, is a function that automatically identifies DC voltage, AC voltage, resistance and continuity and automatically displays the measurements. By pressing the NCV button continuously the LCD displays “EF” and will display “—-“ when voltage is detected and the buzzer sounds. The meter measures 600V AC/DC, frequency, resistance measurements, plus Inrush current and Peak Voltage value. Other features include, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern compact housing ideal for electricians, HVAC technicians and students studying electrical.

Features

  • 4000 count backlit LCD display
  • Smart Mode automatically identifies DCV, ACV, Resistance and continuity
  • Measurement of DC voltage and AC voltage up to 600V
  • Built-In Flashlight
  • Continuity buzzer
  • Peak Mode and Data Hold function
  • Auto Power Off

Specification

  • AC Current: 4.000A – 600A
  • AC Current Resolution: 4mA
  • DC Voltage: 4.000V – 600V
  • DC & AC Voltage Resolution: 1mV
  • AC Voltage: 4.000V – 1000V
  • Resistance: 4.000kΩ – 40.00MΩ
  • Resistance Resolution: 0.001kΩ
  • True RMS Measurements: ACV, ACA
  • AC Bandwidth: 40Hz-1kHz
  • Digital Display: 4000
  • Non-Contact Voltage (NCV): Yes
  • Overrange Indication: Yes
  • Continuity: Yes
  • Jaw Size: 25mm
  • Peak Hold: Yes
  • Back Light: Yes
  • Enclosure: ABS Moulding
  • Low Battery Indication: Yes
  • Batteries: 2 x AAA
  • Weight: 172g
  • Dimensions: 172mm x 64mm x 32mm
  • Safety Specs: IEC61010-1 CAT IV 300V

Additional information

Weight0.172 kg
Dimensions18 × 7 × 3 cm
