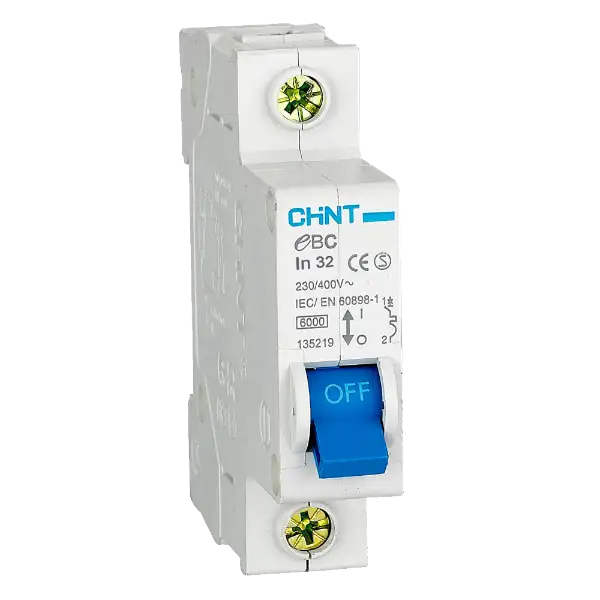

Chint DZ47-EBC 1Pole Amp moulded case circuit breaker DIN

R71.30

Chint 1Pole 16A AC Circuit Breaker DIN

Name: Chint 1Pole 16A AC Circuit Breaker DIN
SKU: 1863
Availability: InStock

SKU: 1863

In Stock

Add to wishlist

Regular Shipping

Package between courier set limits

In Stock

SKU: 1863 Categories: Circuit Breakers, Power Distribution Tags: 16A, 1P, Chint, Din rail, Miniature Circuit Breaker

DZ47-60116 16A 1P 3KA CHINT

Description

Chint miniature circuit breaker is mainly used in AC 50Hz/60Hz, rated voltage of 400V and below, current of 63A and below. The purpose is to act on overload, and short-circuit protection. It can also infrequently turn on or off the electrical appliance and lighting circuit under normal conditions. The EBC range replaced DZ47.
EBC-1P-16A-3KA

Type	EBC-1P-3KA
Number of poles	1P
Frame size	100AF
Line voltage	AC
Rated voltage (Ue)	400VAC
Rated frequency	50/60Hz
Current rating adjustable (Ir)	No
Rated current (In)	16A
Rated short-circuit breaking capacity (Icu)	3kA at 400VAC
Breaking capacity	3kA
On/Off control type	Handle toggle
Mounting method	DIN rail mounting
Connection type	Screw terminals
Overall width	18mm
Overall height	79mm
Overall depth	65.5mm
Degree of protection	IP20
Representative standard	CCC, IEC
Rating	Curve C

Additional information

Weight	0.15 kg
Dimensions	6.5 × 1.8 × 7.9 cm
Online Exclusive	Registered customers qualify for product discount

Reviews

There are no reviews yet.

Be the first to review “Chint 1Pole 16A AC Circuit Breaker DIN”

You must be logged in to post a review.

Exclusive to Shop Kuso

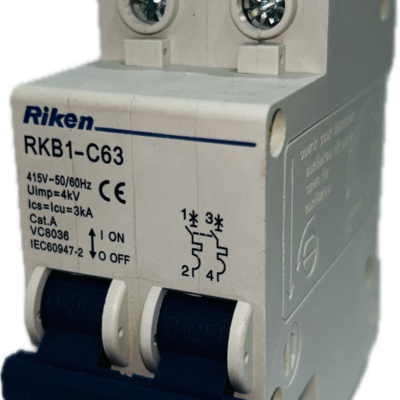

Riken RKB-1 63A AC Circuit Breaker 2P 3KA DIN

Riken RKB-1 50A AC Circuit Breaker 2P 3KA DIN

Riken RKB-1 40A AC Circuit Breaker 2P 3KA DIN

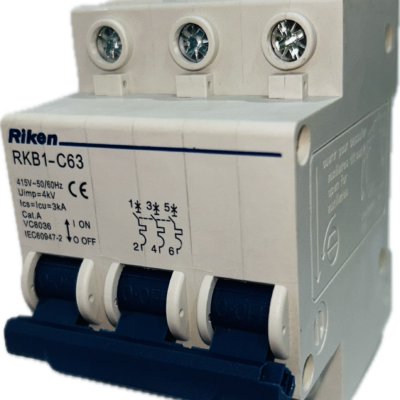

Riken RKB-1 63A AC Circuit Breaker 3P 3KA DIN
